Terraform: EKS구성(2K240708 Test)

2024월 7월 8일 Test

Rocky9 + K8S + EKS



1. Terraform Code

  1.1. 00_provider.tf

terraform {
  required_providers {
    aws = {
      source  = "hashicorp/aws"
      version = "~> 5.57"
    }
  }
}

# Configure the AWS Provider
provider "aws" {
  region = var.region
}



 1.2. 01_vpc.tf

resource "aws_vpc" "eks_vpc" {
  cidr_block           = var.cidr
  enable_dns_hostnames = true
  enable_dns_support   = true

  tags = {
    Name                              = "eks_vpc"
    "kubernetes.io/cluster/sdkim-clu" = "shared"
  }
}

output "vpc_id" {
  value = aws_vpc.eks_vpc.id
}



 1.3. 02_ig.tf

resource "aws_internet_gateway" "eks_ig" {
  vpc_id = aws_vpc.eks_vpc.id

  tags = {
    Name = "eks-ig"
  }
}



 1.4. 03_sub.tf

resource "aws_subnet" "eksnet_mas" {
  count                   = 2
  vpc_id                  = aws_vpc.eks_vpc.id
  cidr_block              = "10.0.${count.index}.0/24"
  map_public_ip_on_launch = true
  availability_zone       = "ap-northeast-2${count.index == 0 ? "a" : "c"}"

  tags = {
    Name = "eksnet-pub-${count.index == 0 ? "a" : "c"}"
    "kubernetes.io/cluster/sdkim-clu" = "shared"
  }
}

resource "aws_subnet" "eksnet_work" {
  count             = 2
  vpc_id            = aws_vpc.eks_vpc.id
  cidr_block        = "10.0.${count.index + 2}.0/24"
  map_public_ip_on_launch = true
  availability_zone = "ap-northeast-2${count.index + 2 == 2 ? "a" : "c"}"

  tags = {
    Name = "eksnet-pri-${count.index + 2 == 0 ? "a" : "c"}"
    "kubernetes.io/cluster/sdkim-clu" = "shared"
  }
}



 1.5. 04_ro.tf

resource "aws_route_table" "eksnet_rota" {
  vpc_id = aws_vpc.eks_vpc.id

  route {
    cidr_block = "0.0.0.0/0"
    gateway_id = aws_internet_gateway.eks_ig.id
  }

  tags = {
    Name = "eksnet-rota"
  }
}



 1.6. 05_rtass.tf

resource "aws_route_table_association" "eksnet_rtass1" {
  count = 2
  subnet_id      = aws_subnet.eksnet_mas[count.index].id
  route_table_id = aws_route_table.eksnet_rota.id
}

resource "aws_route_table_association" "eksnet_rtass2" {
  count = 2
  subnet_id      = aws_subnet.eksnet_work[count.index].id
  route_table_id = aws_route_table.eksnet_rota.id
}



 1.7. 06_clu.tf

resource "aws_eks_cluster" "eks_clu" {
  name     = "sdkim-clu"
  role_arn = aws_iam_role.eks_clurole.arn

  vpc_config {
    subnet_ids              = concat(aws_subnet.eksnet_mas[*].id, aws_subnet.eksnet_work[*].id)
    endpoint_private_access = true
    endpoint_public_access  = true
    security_group_ids = [aws_security_group.eks_cluster.id]
  }

  # Ensure that IAM Role permissions are created before and deleted after EKS Cluster handling.
  # Otherwise, EKS will not be able to properly delete EKS managed EC2 infrastructure such as Security Groups.
  depends_on = [
    aws_iam_role_policy_attachment.eks-AmazonEKSClusterPolicy,
    aws_iam_role_policy_attachment.eks-AmazonEKSVPCResourceController,
  ]
}

output "endpoint" {
  value = aws_eks_cluster.eks_clu.endpoint
}
/*
data "aws_iam_policy_document" "assume_role" {
  statement {
    effect = "Allow"

    principals {
      type        = "Service"
      identifiers = ["eks.amazonaws.com"]
    }

    actions = ["sts:AssumeRole"]
  }
}

resource "aws_iam_role" "eks_clurole" {
  name               = "eks-cluster-role"
  assume_role_policy = data.aws_iam_policy_document.assume_role.json
}
*/

resource "aws_iam_role" "eks_clurole" {
  name = "terraform-eks-cluster"

  assume_role_policy = <<POLICY
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "eks.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}
POLICY
}

resource "aws_iam_role_policy_attachment" "eks-AmazonEKSClusterPolicy" {
  policy_arn = "arn:aws:iam::aws:policy/AmazonEKSClusterPolicy"
  role       = aws_iam_role.eks_clurole.name
}

# Optionally, enable Security Groups for Pods
# Reference: https://docs.aws.amazon.com/eks/latest/userguide/security-groups-for-pods.html
resource "aws_iam_role_policy_attachment" "eks-AmazonEKSVPCResourceController" {
  policy_arn = "arn:aws:iam::aws:policy/AmazonEKSVPCResourceController"
  role       = aws_iam_role.eks_clurole.name
}

#resource "aws_eks_addon" "eks_coredns" {
#  cluster_name                = aws_eks_cluster.eks_clu.name
#  addon_name                  = "coredns"
#  addon_version               = "v1.11.1-eksbuild.8"
# resolve_conflicts_on_create = "OVERWRITE"
# }

resource "aws_eks_addon" "eks_cni" {
  cluster_name                = aws_eks_cluster.eks_clu.name
  addon_name                  = "vpc-cni"
  addon_version               = "v1.18.2-eksbuild.1"
  resolve_conflicts_on_create = "OVERWRITE"
}

resource "aws_eks_addon" "eks_pod" {
  cluster_name                = aws_eks_cluster.eks_clu.name
  addon_name                  = "eks-pod-identity-agent"
  addon_version               = "v1.3.0-eksbuild.1"
  resolve_conflicts_on_create = "OVERWRITE"
}

resource "aws_eks_addon" "eks_proxy" {
  cluster_name                = aws_eks_cluster.eks_clu.name
  addon_name                  = "kube-proxy"
  addon_version               = "v1.30.0-eksbuild.3"
  resolve_conflicts_on_create = "OVERWRITE"
}

resource "aws_security_group" "eks_cluster" {
  name        = "eks-cluster"
  description = "Cluster communication with worker nodes"
  vpc_id      = aws_vpc.eks_vpc.id

  egress {
    from_port   = 0
    to_port     = 0
    protocol    = "-1"
    cidr_blocks = ["0.0.0.0/0"]
  }

  tags = {
    Name = "eks-cluster"
  }
}

# security group의 ingress 룰을 추가한다.
resource "aws_security_group_rule" "eks-cluster-ingress-https" {
  cidr_blocks       = ["0.0.0.0/0"]
  description       = "Allow workstation to communicate with the cluster API Server"
  from_port         = 443
  protocol          = "tcp"
  security_group_id = aws_security_group.eks_cluster.id
  to_port           = 443
  type              = "ingress"
}



 1.8. 07_node.tf

resource "aws_eks_node_group" "eks_node" {
  cluster_name    = aws_eks_cluster.eks_clu.name
  node_group_name = "eks-node"
  node_role_arn   = aws_iam_role.eks_noderole.arn
  subnet_ids      = [aws_subnet.eksnet_work[0].id, aws_subnet.eksnet_work[1].id]
#  ami_type        = "ami-0f4516ee1fe91acc1"
  capacity_type   = "ON_DEMAND"
  disk_size       = 20
  instance_types  = ["m5.large"]

  scaling_config {
    desired_size = 1
    max_size     = 2
    min_size     = 1
  }

  update_config {
    max_unavailable = 1
  }

  # Ensure that IAM Role permissions are created before and deleted after EKS Node Group handling.
  # Otherwise, EKS will not be able to properly delete EC2 Instances and Elastic Network Interfaces.
  depends_on = [
    aws_iam_role_policy_attachment.eks-AmazonEKSWorkerNodePolicy,
    aws_iam_role_policy_attachment.eks-AmazonEKS_CNI_Policy,
    aws_iam_role_policy_attachment.eks-AmazonEC2ContainerRegistryReadOnly,
  ]
}

resource "aws_iam_role" "eks_noderole" {
  name = "eks-noderole"

  assume_role_policy = <<POLICY
{
  "Version": "2012-10-17",
  "Statement": [
    {
      "Effect": "Allow",
      "Principal": {
        "Service": "ec2.amazonaws.com"
      },
      "Action": "sts:AssumeRole"
    }
  ]
}
POLICY
}

resource "aws_iam_role_policy_attachment" "eks-AmazonEKSWorkerNodePolicy" {
  policy_arn = "arn:aws:iam::aws:policy/AmazonEKSWorkerNodePolicy"
  role       = aws_iam_role.eks_noderole.name
}

resource "aws_iam_role_policy_attachment" "eks-AmazonEKS_CNI_Policy" {
  policy_arn = "arn:aws:iam::aws:policy/AmazonEKS_CNI_Policy"
  role       = aws_iam_role.eks_noderole.name
}

resource "aws_iam_role_policy_attachment" "eks-AmazonEC2ContainerRegistryReadOnly" {
  policy_arn = "arn:aws:iam::aws:policy/AmazonEC2ContainerRegistryReadOnly"
  role       = aws_iam_role.eks_noderole.name
}



 1.9. 100_vars.tf

variable "region" {
  description = "Seoul Region"
  type        = string
  default     = "ap-northeast-2"
}

variable "cidr" {
  description = "eks use vpc"
  type        = string
  default     = "10.0.0.0/16"
}

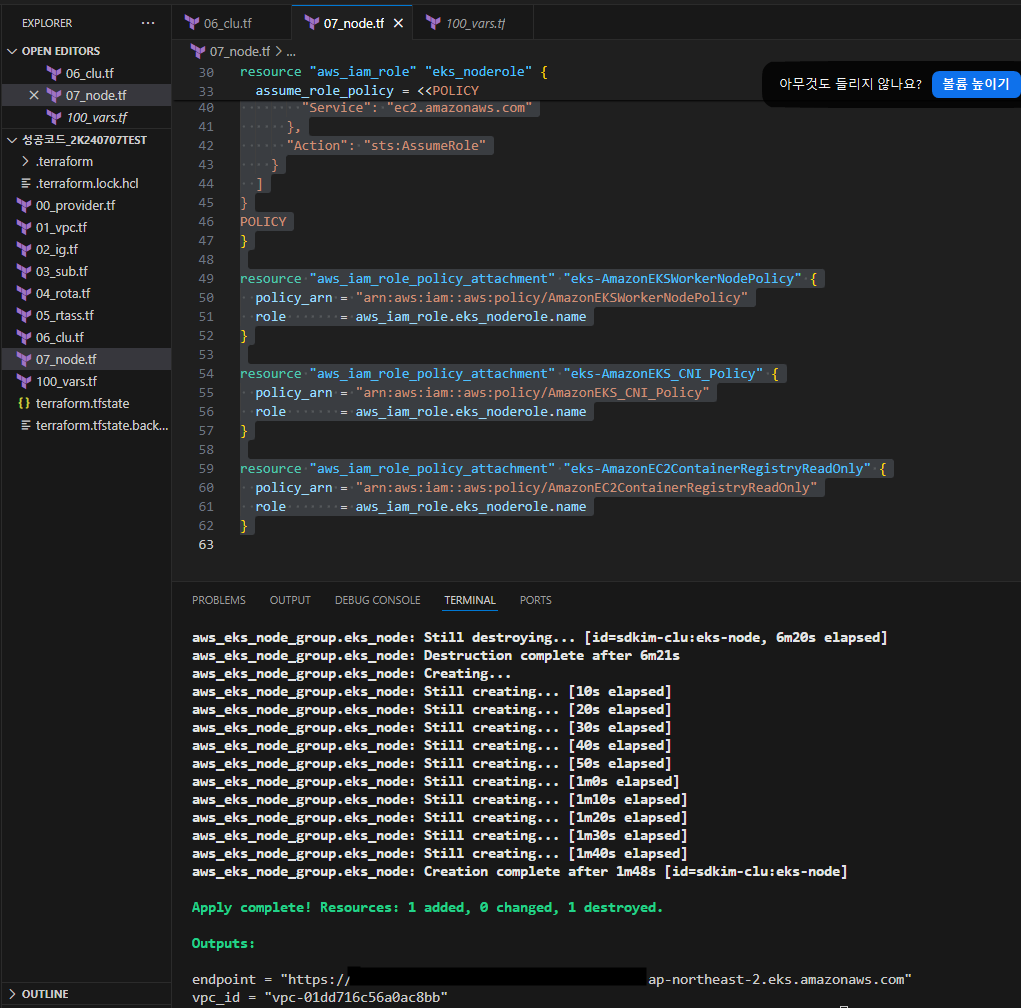

2. EKS 구성완료

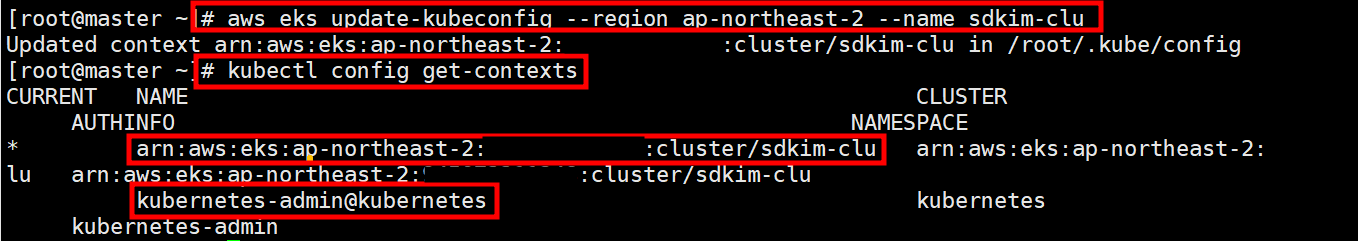

3. Onpremis K8S <- EKS Connection

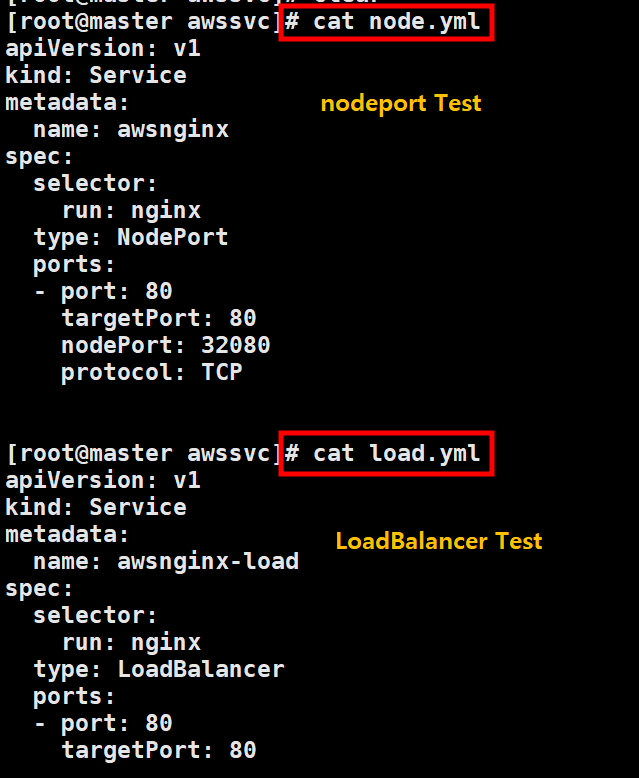

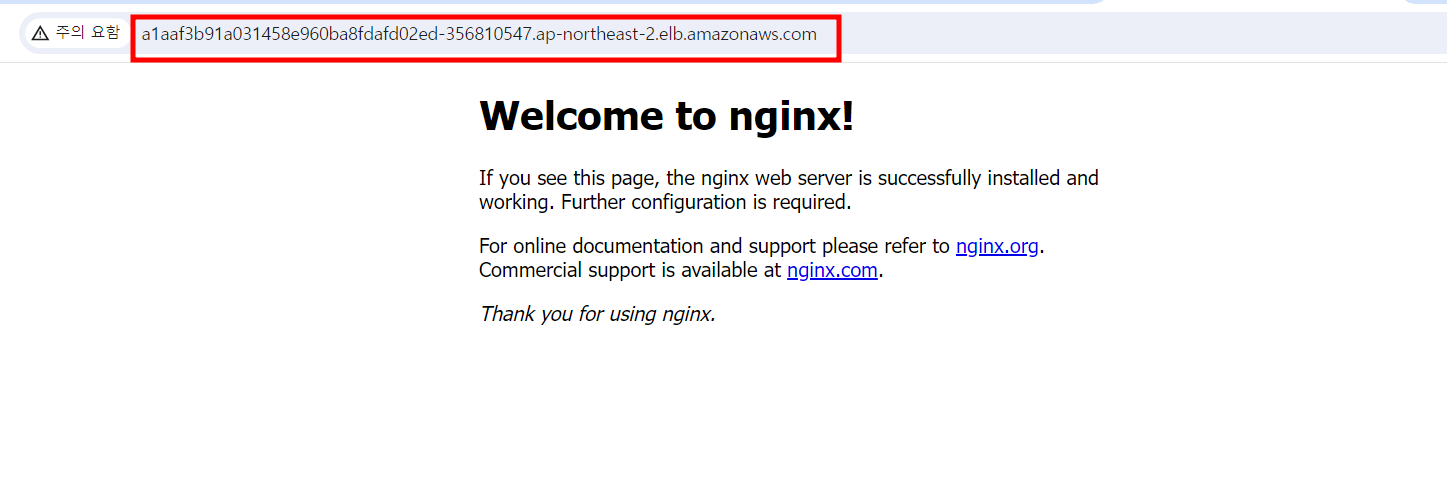

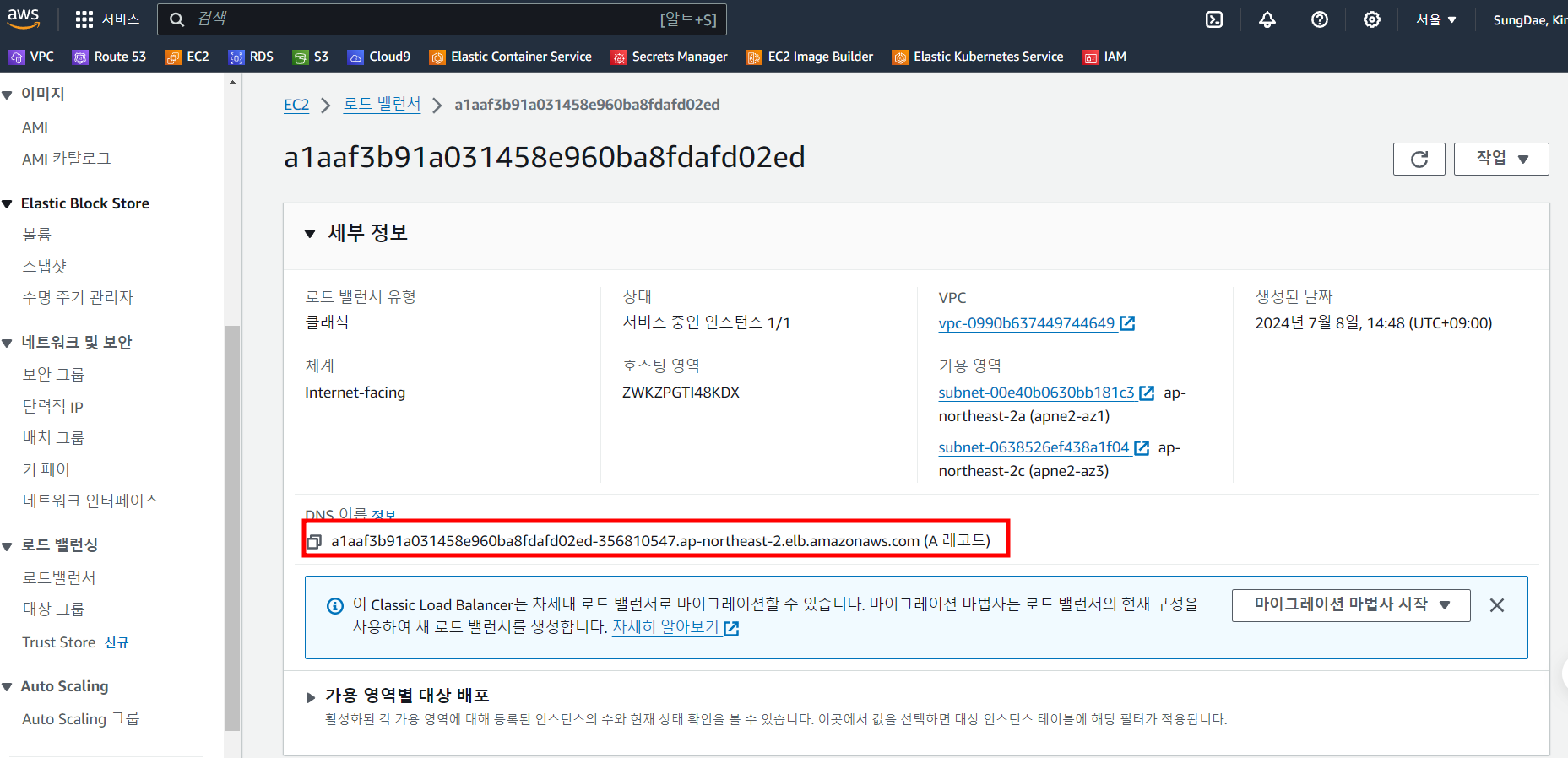

4. NodePort & LoadBalancer

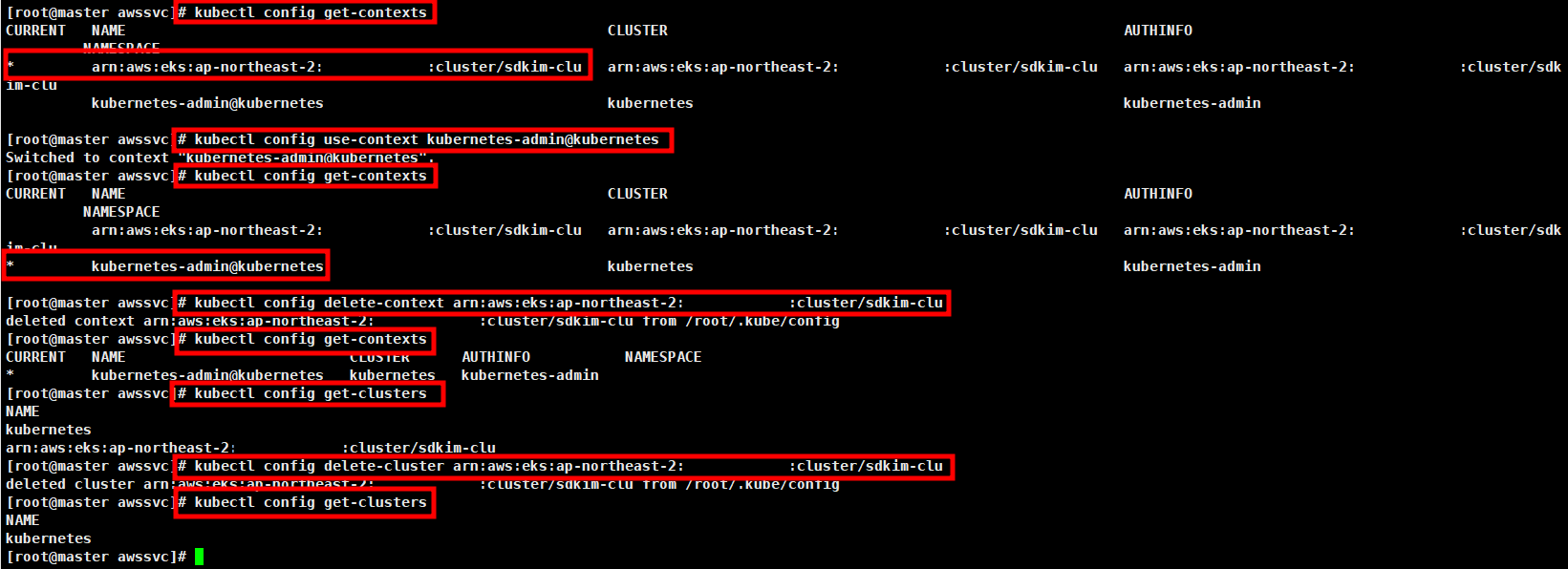

5. Onpremis K8S <- EKS DisConnector
