DHCP & DHCP IP Helper-Address (DHCP Relay Agent)
Server가 아닌 Router 에서의 DHCP설정과
다른 Network로 DHCP 정보를 넘겨주는 DHCP IP Helper-Address 기능에 대해서 살펴보겠습니다.
Server System에서는 ip helper-address를 DHCP Relay Agent라고 합니다.
DHCP는 Discover -> Offer -> Request -> Ack가 최초에는 Broadcast로 이루어 집니다.
갱신시에는 Request -> Ack가 임대시간의 7/8되는 시점까지 Unicast 방식으로 동작하구요.
최초 DHCP Broadcast가 Network 를 넘어가지 못하는 것을 Unicast 방식으로 넘겨주는 것이 DHCP Relay Agent 입니다.
이것을 Cisco Router에서 구현한 것을 ip helper-address라는 명령어로 사용합니다.
주로 DHCP설정은 Router or L3 Switch에서 구성하지만 전용 Appliance 장비를 통해서도 구성을 합니다.

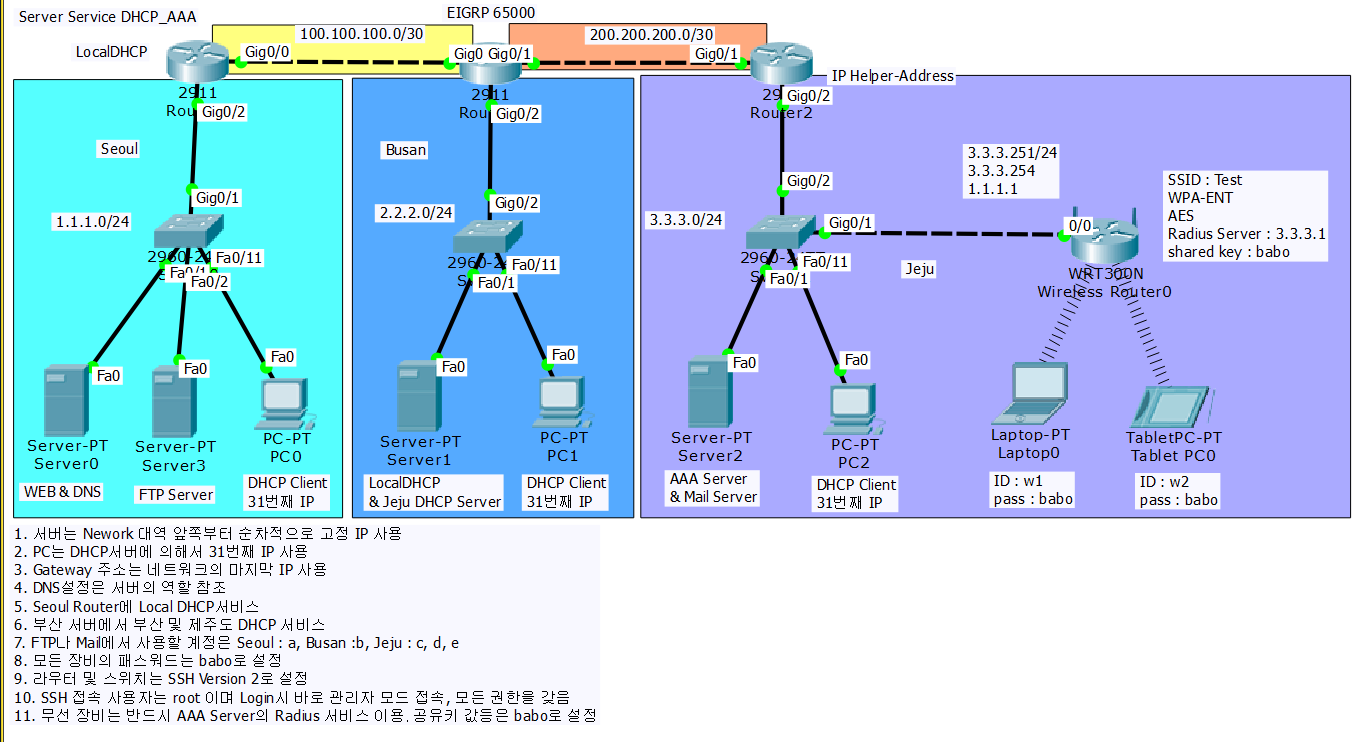

1. 구성도
2. Router DHCP 설정
2.1. Seoul Network 에만 Local로 서비스
2.2. Seoul
----------------------------------------------------------------------
hostname Seour_R1
enable secret 5 $1$mERr$WHVRrZydUtzjwi3kLF9Cl/
ip dhcp excluded-address 1.1.1.1 1.1.1.30
ip dhcp excluded-address 1.1.1.254
ip dhcp pool seoul
network 1.1.1.0 255.255.255.0
default-router 1.1.1.254
dns-server 1.1.1.1
no ip cef
no ipv6 cef
username root privilege 15 password 7 08234D4C06
license udi pid CISCO2911/K9 sn FTX1524J4F5-
ip ssh version 2
no ip domain-lookup
ip domain-name sdkim.com
spanning-tree mode pvst
interface GigabitEthernet0/0
ip address 100.100.100.1 255.255.255.252
duplex auto
speed auto
interface GigabitEthernet0/1
no ip address
duplex auto
speed auto
shutdown
interface GigabitEthernet0/2
ip address 1.1.1.254 255.255.255.0
duplex auto
speed auto
interface GigabitEthernet0/0/0
no ip address
shutdown
interface Vlan1
no ip address
shutdown
router eigrp 65000
passive-interface GigabitEthernet0/2
network 1.1.1.0 0.0.0.255
network 100.100.100.0 0.0.0.3
ip classless
ip flow-export version 9
line con 0
exec-timeout 0 0
logging synchronous
line aux 0
line vty 0 4
login local
transport input ssh
------------------------------------------------------------------------------

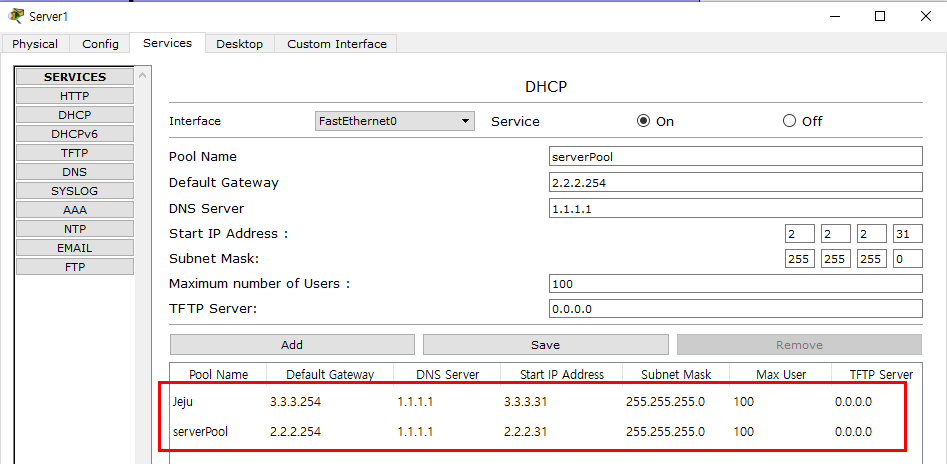

3. Server DHCP 구성
3.1. Busna Network Local Service
3.2. Pool Name : serverPool 기본 Pool Name 변경 불가
4. DHCP Relay Agent
4.1. Jeju Network DHCP Service
4.2. Jeju Router 에서 DHCP Broadcast를 Unicast로 넘겨줌
4.3. Broadcast를 Network 를 넘어갈 수 없음.
Jeju_R1
config)# interface g0/2
config-if)# ip helper-address 2.0.0.1
5. 검증

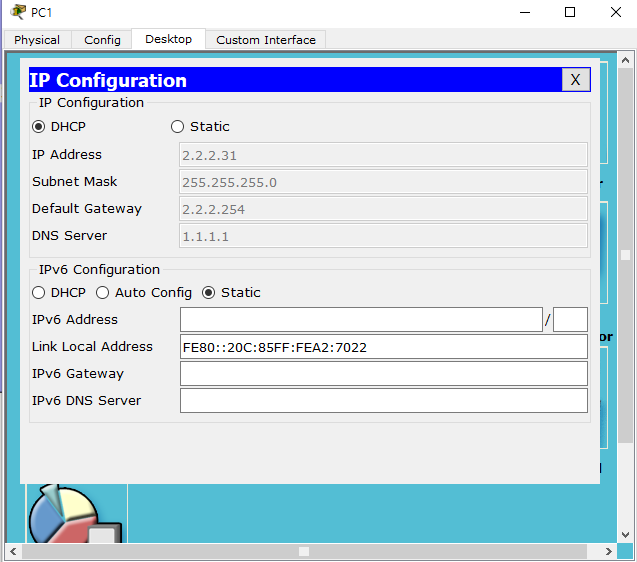

5.1. Busan PC 확인
5.2. Jeju PC 확인
자! 다음에는 동일한 구성도에서 Wireless 와 AAA 인증에 대해서 살펴보겠습니다.
Have a nice day!
